EPUBTurn and Convertio: compare a real research PDF

By EPUBTurn · Updated

On the same published paper, EPUBTurn’s reviewed export kept passage order and numeric context; Convertio mixed the columns and omitted Figure 1’s plots. EPUBTurn’s figure crop still has a limitation.

On this page
  1. The real paper used for this comparison
  2. How the EPUBTurn result was made
  3. Column order: a value enters the wrong sentence
  4. Figure 1: caption words are not the plot
  5. What EPUBTurn retained—and what was clipped
  6. Choose a permitted workflow, then judge its content
  7. The source, raw files and your next check

The real paper used for this comparison

Convertio’s default download completed, but the research-paper output mixes a right-column confidence interval into an unrelated opening sentence. That matters more than merely receiving an EPUB. The source and saved results below show the reading difference with EPUBTurn’s reviewed result, including the limits of that reviewed result.

We publish EPUBTurn. The comparison uses the source and saved results so you can inspect the evidence.

How the EPUBTurn result was made

EPUBTurn’s initial automatic workflow stopped on page 7. Three equation image boundaries were manually corrected before a reviewed result was made. Competitor files use their stated defaults. The remaining figure defect was not repaired.

Column order: a value enters the wrong sentence

Convertio’s tested default output inserts “16.82–18.96; n = 57 sites” into the opening left-column passage about young mature female fish. In the source, that interval belongs to a result at the end of the left column and continuation at the top of the right. The words survive, but their interleaving interrupts the explanation. The screenshot and raw reading order are evidence for that specific problem.

Convertio

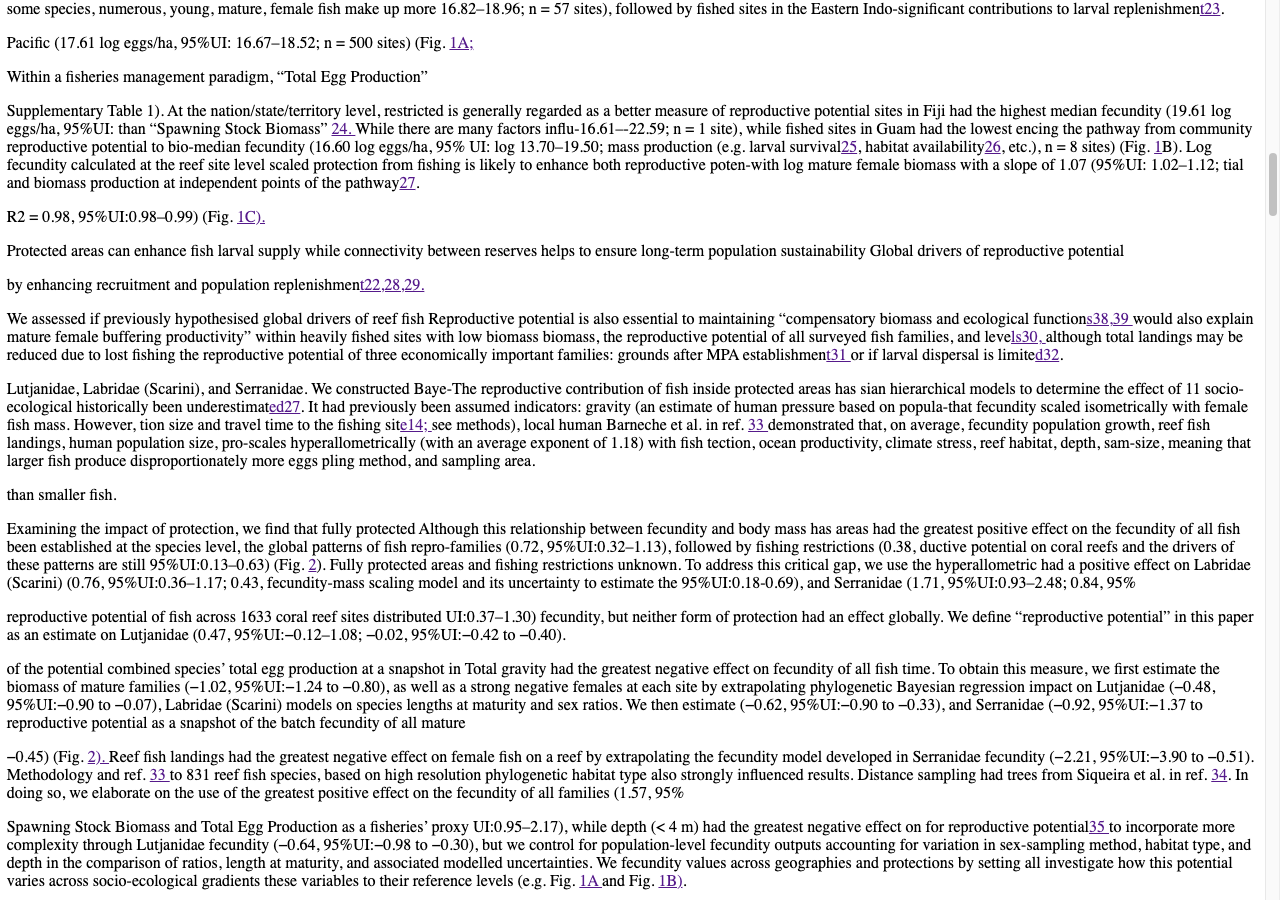

Convertio actual published-paper columns passage
Convertio: right-column value enters the left passage. Actual browser view; no manual output repairs. Open full-size image

EPUBTurn

Reviewed EPUBTurn result: passage order and numeric context retained
Reviewed EPUBTurn result: passage order and numeric conditions retained. Open full-size image

Figure 1: caption words are not the plot

The source combines a world map, density curve and scatterplot, each with meaningful markers and legends. Convertio’s output retains caption and label text but not those visual panels. Numbers and a figure caption cannot replace the relationships visible in the plots. Compare the source page beside the downloaded figure passage before calling a chart retained.

Convertio

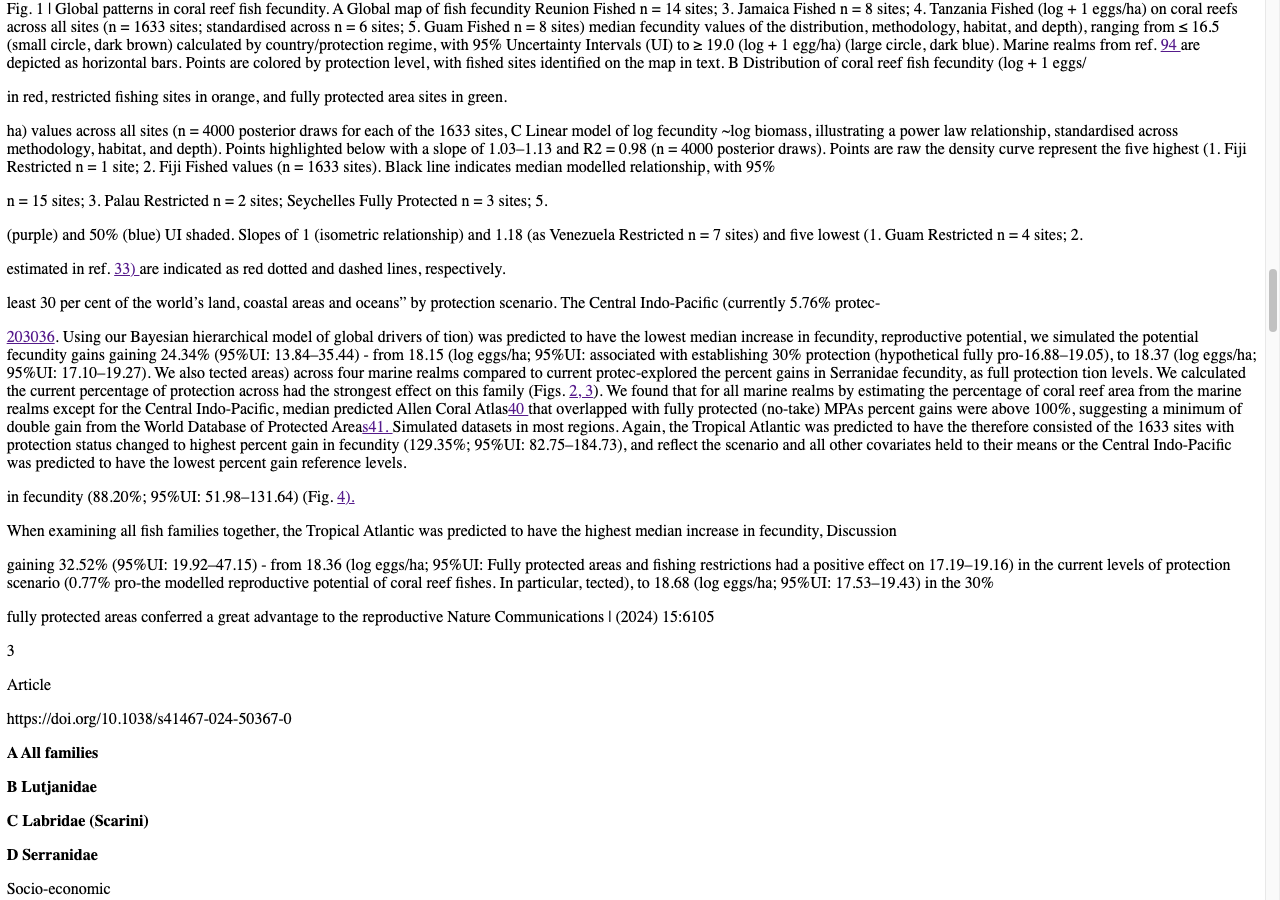

Convertio actual published-paper figure1 passage
Convertio: caption text remains without the three visual panels. Actual browser view; no manual output repairs. Open full-size image

EPUBTurn

Reviewed EPUBTurn result: Figure 1 panels retained with clipped lower x-axis labels
Reviewed EPUBTurn result: three plot panels retained, but lower x-axis labels and titles clipped. Open full-size image

What EPUBTurn retained—and what was clipped

The reviewed EPUBTurn passage keeps 16.82–18.96 with its fished-site condition instead of inserting the interval into the opening sentence, as Convertio does. The three Figure 1 panels survive with their caption. EPUBTurn’s crop loses lower x-axis ticks and titles, however; a useful plot image does not establish full fidelity.

Published source PDF

Original source page 2: two columns with a numeric result continuing across the break.
Original source page 2: two columns with a numeric result continuing across the break. Open full-size image

EPUBTurn reviewed result

Reviewed EPUBTurn result: passage order and numeric context retained
Reviewed export: left and right passages remain ordered. Open full-size image

Published source PDF

Original source page 3: complete Figure 1 with its lower axes and caption.
Original source page 3: complete Figure 1 with its lower axes and caption. Open full-size image

EPUBTurn reviewed result

Reviewed EPUBTurn result: Figure 1 panels retained with clipped lower x-axis labels
Reviewed export: map, density and scatterplot retained; lower x-axis labels clipped. Open full-size image

Choose a permitted workflow, then judge its content

Convertio’s anonymous default route returned a download without payment. Simple documents may require less reconstruction than this paper. No OCR preprocessing or paid configuration was tested.

Browser captures use a 1280 × 900 view at 100% zoom. No native reader or device was tested. This paper has no scan or table-grid test; no accuracy or speed ranking is claimed.

The source, raw files and your next check

Source: Hadj-Hammou et al. (2024), Global patterns and drivers of fish reproductive potential on coral reefs, Nature Communications 15:6105, doi:10.1038/s41467-024-50367-0. CC BY 4.0. We used original pages 1–10, omitting the final reference/licence page. No source wording was rewritten. Converted files and screenshot excerpts are adaptations.

A downloaded file should let you follow the paper’s explanation. Try an EPUBTurn sample of your report and match a value to its population or condition, then inspect a useful figure. Only the up-to-ten automatically selected pages are covered; keep important later passages unchecked until you see them.
